เครื่องชาร์จแบตเตอรี่ : PM60-30

CONSTANT CURRENT BATTERY CHARGER pm60-30

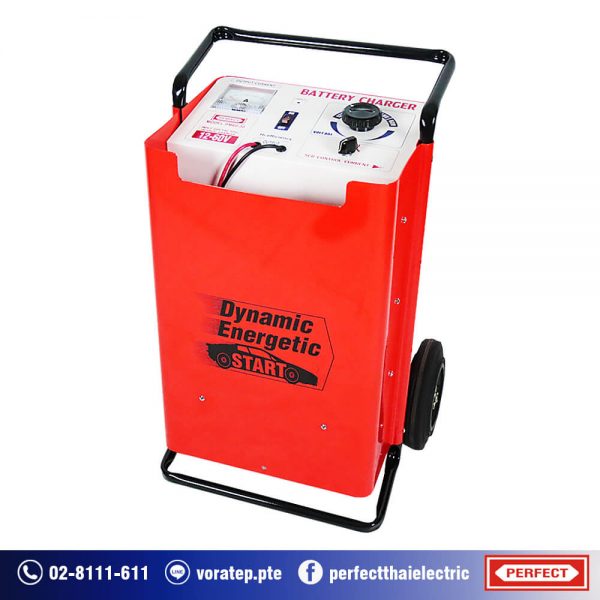

CONSTANT CURRENT BATTERY CHARGER pm60-30 front

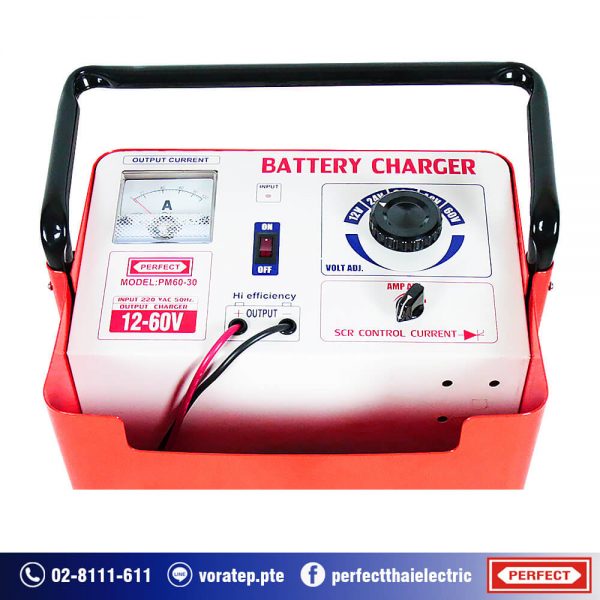

CONSTANT CURRENT BATTERY CHARGER pm60-30-panel

CONSTANT CURRENT BATTERY CHARGER

Model PM60-30

Model PM60-30, a constant current battery charger without a timer, can adjust the charging current to be constant from 0-30A as needed.

Model PM60-30 is able to charge the battery 12V-24V-36V-48V-60V.

(Without TIMER / If you need With TIMER Type, Please select Model PM60-30T)

The model PM60-30 battery charger is able to charge and restore completely drained batteries, or batteries in poor condition. Also, the charger is suitable for used batteries 1-2 years which are rarely used, for example, the battery in cars that are left parked for a long time, then the battery power will run out by itself. PM60-30 constant current battery charger will solve this problem.

Free clamps and wires for charging

Advantages of constant current charging

Constant current charging, the current will not fall while charging, high efficiency and stable charging.
Constant current charging help restore the battery with high voltage and high power charging. If sulfates are attached to the battery plate inside the battery frame, PM60-30 will stimulate pushing out the sulphate to extend the battery’s lifetime.

Usage

The PM60-30 battery charger is able to charge lead-acid batteries, such as car batteries, motorcycle batteries, boat batteries, deep cycle batteries, liquid batteries.
The PM60-30 battery charger is able to charge both large batteries and small batteries because the charging current can be adjusted from zero to the maximum value, for example, if charging a small motorcycle battery, PM60-30 can be set the charging current from a very small value at 0.2A, 0.3A, 0.4A.
The PM60-30 battery charger is suitable for car service centers, car tents, car sellers, battery shops that need to charge a lot of batteries at once. the PM60-30 battery charger can charge 12V batteries 5 pieces at once. (total 60V) and can parallel charge (2 strings) for a total of 10 batteries.

Strengths

Charge and restore completely drained batteries, or batteries in poor condition.
Charge both large and small batteries
Charge a lot of batteries at once.
Wide charging voltage range 12V-24V-36V-48V-60V in one device
Reverse polarity protection and INPUT breaker protection will protect the charger and batteries.
Output connection protection when the user does not connect the clamps to the battery
Easy to use
High durability

How to use PM60-30 battery charger

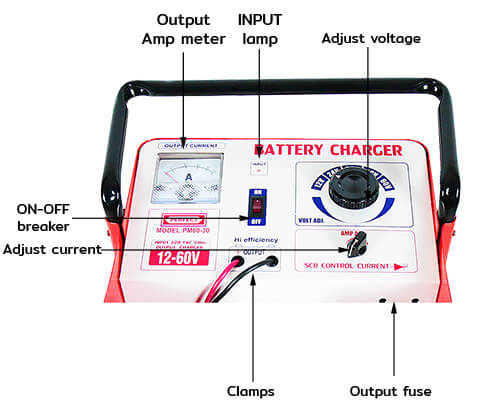

The front panel of PM60-30 battery charger

Plug-in power input 220Vac 1Phase and switch breaker to ON position, then an input lamp and timer control panel will show.
Adjust the voltage knob according to the number of batteries that needed to charge.
Connect a red positive clamp to the battery’s positive pole (+) and a black negative clamp to the battery’s negative pole (-)
Press an ON/START button, the charger will start running. The timer will show 00.00 then slightly adjust current volume according to AMP-HOURS (the capacity of the battery). Observe the output current at the output current meter.

Caution

Do not connect the battery wrong polarity between clamps and battery poles.
Do not allow positive clamp touch to negative clamp.
Replace the same size of the fuse when needed to change.

1 Year Warranty with aftercare service.

We have been exporting this model PM60-30 battery charger to Southeast Asian Countries. (Myanmar, Laos, Singapore, Indonesia, the Philippines, Malaysia)

Download

Call: 02-8111-611-5, 086-322-7193 (sale)
Email: sale_perfect@hotmail.com
www.perfectthai.net
LINE ID: voratep.pte

Categories: BATTERY CHARGER, ● CONSTANT CURRENT BATTERY CHARGER

Description

Product Description

CONSTANT CURRENT BATTERY CHARGER
MODEL : PM60-30

MODEL	LEAD ACID BATTERY	OUTPUT CURRENT	TIMER
PM48-30	6V-12V-24V-36V-48V	30A	Without TIMER
PM48-30T	6V-12V-24V-36V-48V	30A	With TIMER
PM60-30	12V-24V-36V-48V-60V	30A	Without TIMER
PM60-30T	12V-24V-36V-48V-60V	30A	With TIMER
