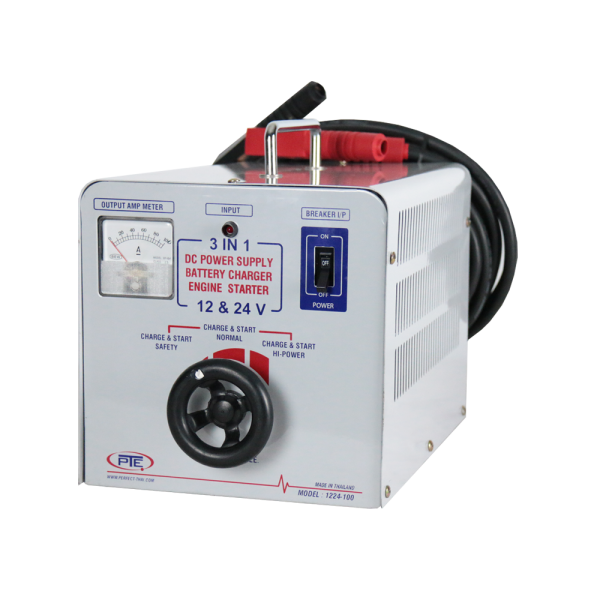

เครื่องชาร์จแบตเตอรี่ : PM1224-100

CONSTANT CURRENT BATTERY CHARGER

Model PM60-30T

Model PM60-30T, a constant current battery charger with a timer, can adjust the charging current to be constant from 0-30A as needed.

Model PM60-30 is able to charge the battery 12V-24V-36V-48V-60V.



The model PM60-30T battery charger is able to charge and restore completely drained batteries, or batteries in poor condition. Also, the charger is suitable for used batteries 1-2 years which are rarely used, for example, the battery in cars that are left parked for a long time, then the battery power will run out by itself. PM60-30T constant current battery charger will solve this problem.



** Free clamps and wires for charging **



Advantages of constant current charging

1. Constant current charging, the current will not fall while charging, high efficiency and stable charging.
2. Constant current charging help restore the battery with high voltage and high power charging. If sulfates are attached to the battery plate inside the battery frame, PM60-30T will stimulate pushing out the sulphate to extend the battery’s lifetime.



Usage

1. The PM60-30T battery charger is able to charge lead-acid batteries, such as car batteries, motorcycle batteries, boat batteries, deep cycle batteries, liquid batteries.
2. The PM60-30T battery charger is able to charge both large batteries and small batteries because the charging current can be adjusted from zero to the maximum value, for example, if charging a small motorcycle battery, PM60-30 can be set the charging current from a very small value at 0.2A, 0.3A, 0.4A.
3. The PM60-30T battery charger is suitable for car service centers, car tents, car sellers, battery shops that need to charge a lot of batteries at once. the PM60-30 battery charger can charge 12V batteries 5 pieces at once. (total 60V) and can parallel charge (2 strings) for a total of 10 batteries.



Strengths

1. Charging time can be set through a high-precision TIMER which is controlled by a microcontroller system. Accept input voltage swing between 180-240V.
2. When the time is up, the charger will automatically stop charging. Moreover, the TIMER remembers the last setting. So, If users repeatedly charge the same size battery, they do not have to set the TIMER again.
3. Charge and restore completely drained batteries, or batteries in poor condition.
4. Charge both large and small batteries
5. Charge a lot of batteries at once.
6. Wide charging voltage range 12V-24V-36V-48V-60V in one device
7. Reverse polarity protection and INPUT breaker protection will protect the charger and batteries.
8. Output connection protection when the user does not connect the clamps to the battery
9. Easy to use
10. High durability



How to use PM60-30T battery charger

The front panel of PM60-30T battery charger



1. Plug-in power input 220Vac 1Phase and switch breaker to ON position, then an input lamp and timer control panel will show.
2. Adjust the voltage knob according to the number of batteries that needed to charge.
3. Connect a red positive clamp to the battery’s positive pole (+) and a black negative clamp to the battery’s negative pole (-)
4. Charging without timer control. Press an ON/START button, the charger will start running. The timer will show 00.00 then slightly adjust current volume according to AMP-HOURS (the capacity of the battery). Observe the output current at the output current meter.
5. Charging with timer control. Press HR/MON button to set hours, and press MIN button to set minutes. Then press and hold ON/START button for 3 secs, the charger will start running. The decimal point will flash and the time will start counting down. Check hours and minutes by pressing HR/MON button. When the time is up, the charger will automatically stop charging.



      Caution

1. Do not connect the battery wrong polarity between clamps and battery poles.
2. Do not allow positive clamp touch to negative clamp.
3. Replace the same size of the fuse when needed to change.



1 Year Warranty with aftercare service.

We have been exporting this model PM60-30T battery charger to Southeast Asian Countries. (Myanmar, Laos, Singapore, Indonesia, the Philippines, Malaysia)
